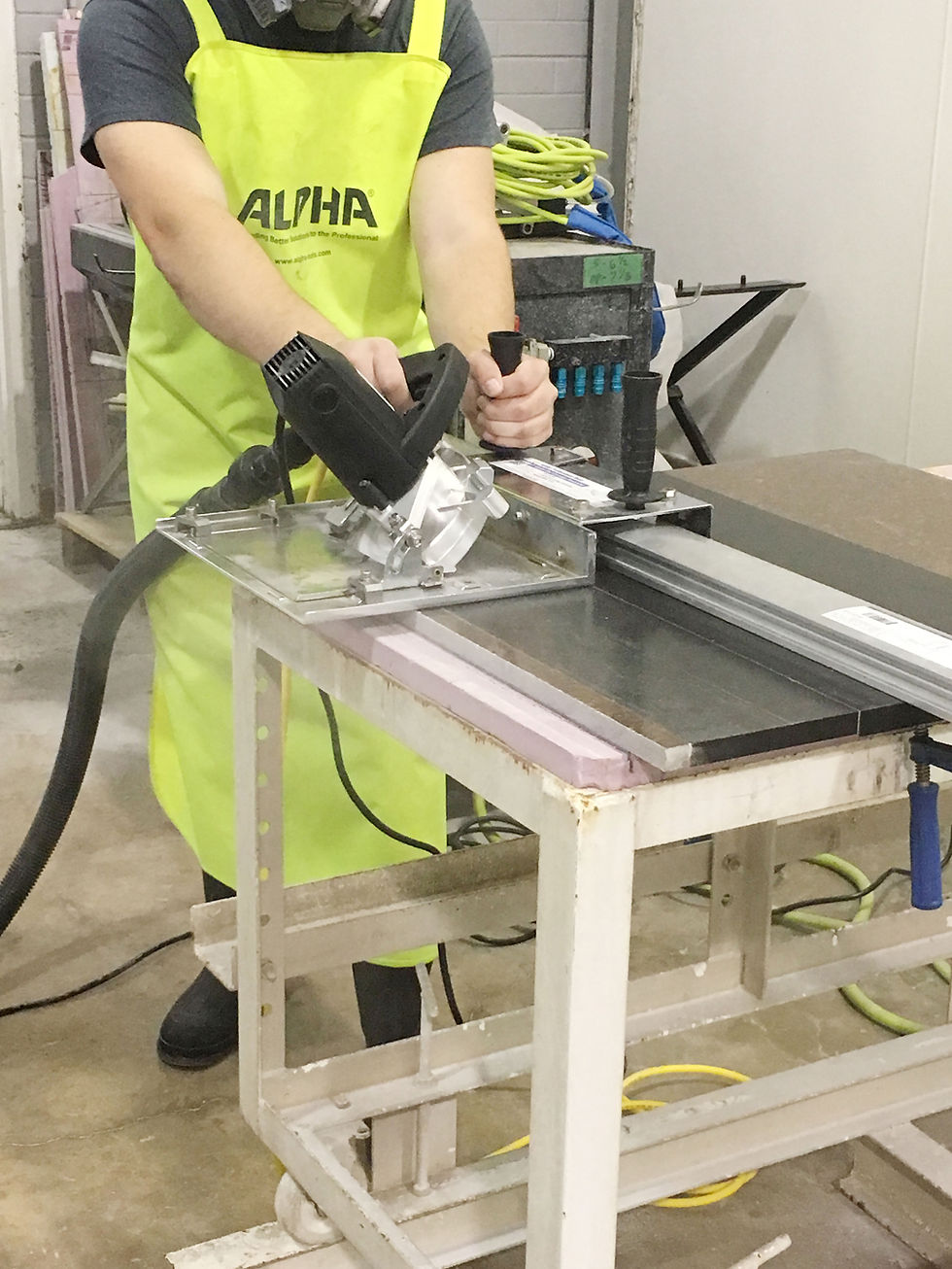

Alpha® is excited to introduce a new electric stone cutter, called the ESC-150, which is equipped with a powerful motor capable cutting 1-1/4” (3cm) stone slabs in one pass. In addition, Alpha® recognized the need for a quality electric portable stone cutter that is capable of miter cutting of 1-1/4” (3cm) materials with ease, so that any stone fabricator can use it when miter cuts are required, without the time-consuming setup. Also, it is great for sink-hole cutting and groove-cutting for rodding applications. The ESC-150 includes a kink-free water hose for improved maneuverability of the stone cutter. The flexibility of the hose helps reduce operator fatigue and improves the operation. The Alpha® ESC-150 comes with a built-in dust gate making it dustless when connected to a HEPA vacuum. It can utilize a variety of consumables including the Alpha® Katana 6” for porcelain panels and slabs, Hot-Rod 4” for 1/4” steel rods and 1/8” fiber glass rods. For marble applications, a Libero 5” blade is recommended since most marble slabs are 3/4” (2cm) thick or less. Alpha® offers a carriage assembly that fits on the Alpha® Guide Rail System to support the application of making precise miter cuts for the perfect lamination.

Product Details
Specification
Data
Model
ESC-150 / ESC-250
Rating
110/220 Volts
Amperage
11.2A / 5.5A
Power
1200W
No Load Speed (min-1)
10,000 RPM
Weight
11.30 lbs (5.12 kgs)
Arbor
7/8" (22.23mm)
Cutting Disc Diameter
6" (150mm)
Max. Cutting Depth
2" (50.88mm)
Cord
15ft (4.5m) Single Phase
Plug Type
A (110V) / C (220V)
Equipment Included
Item
Quantity
Side Handle
1
Screw (M6x30-Left)
1
Flange-3
1
Water Hose Assembly (15ft / 4.5m)
1
Water Quick Coupler w/ Shut-off Valve
1
Carbon Brush Set
1
Water Valve Assembly
1
SS Flat Head Screw (M4x10)
3
Ground Fault Circuit Interrupter
1
End Cap
1
T-Handle Wrench
1
Open-End Wrench (17mm)
1
Easy On-Easy Off Sleeve
1
Self-stick Felt Strip Set
1
Hex. Wrench (5mm)
1
